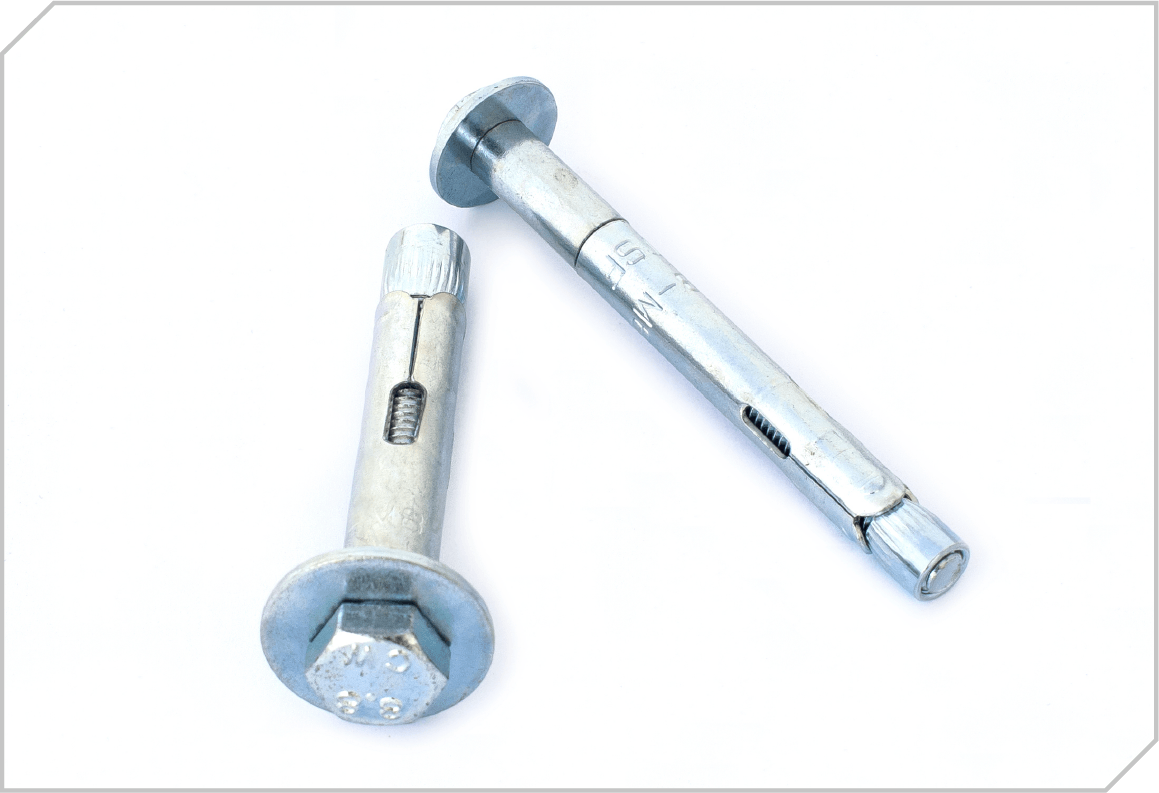

SLEEVE ANCHORS HEX HEAD
GRADE 4.8, 8.8
Sleeve anchors hex head are mainly used for:
- In place heavy duty fixings in concrete
Zinc plated
Carbon steel, case hardened
Zinc plated
| NOMINAL SIZE | D (mm) | L (mm) | H (mm) | HEX NUT DRIVE (mm) |
|---|---|---|---|---|
| M6 | 6 | 50-75 | 10 | 10 |
| M8 | 8 | 45-100 | 13 | 13 |
| M10 | 10 | 60-140 | 17 | 17 |
| M12 | 12 | 70-160 | 19 | 19 |
| M16 | 16 | 80, 100 | 24 | 24 |
*If viewed on a mobile device drag table across to see all info
Almost all products are in stock and we can ensure immediate delivery locally and overseas. No minimum order level.
AVAILABLE SIZES
| Dmm | Lmm | |
|---|---|---|
| M8 | x | 45 |
| 50 | ||
| 60 | ||
| 70 | ||
| 80 | ||
| 100 | ||
| M10 | x | 60 |
| 65 | ||
| 70 | ||
| 80 | ||
| 100 | ||
| 120 | ||
| 125 | ||
| 140 | ||
| M12 | x | 70 |
| 80 | ||
| 100 | ||
| 120 | ||
| 130 | ||
| 140 | ||
| 150 | ||
| 160 | ||
| M16 | x | 80 |
| 100 | ||
| Dmm | Lmm | |
|---|---|---|
| M8 | x | 45 |
| 50 | ||
| 60 | ||
| 70 | ||
| 80 | ||
| 100 | ||
| M10 | x | 60 |
| 65 | ||
| 70 | ||
| 80 | ||
| 100 | ||
| 120 | ||
| 125 | ||
| 140 | ||
| M12 | x | 70 |
| 80 | ||
| 100 | ||
| 120 | ||
| 130 | ||
| 140 | ||
| 150 | ||
| 160 | ||
| M16 | x | 80 |
| 100 | ||
